WPA3 Security Testing

Wi-Fi security has evolved significantly over the past two decades, driven by the growing need to protect wireless communications from increasingly sophisticated attackers. From the early days of WEP, through the long-standing WPA2 standard, and now to WPA3, the security of wireless networks continues to be one of the most critical areas in cybersecurity. WPA3, designed as the successor to WPA2, aims to remedy many long-known weaknesses, including those related to brute‑force attacks, weak passphrases, and vulnerabilities in handshake mechanisms. However, as with any security protocol, the theoretical strength of WPA3 does not guarantee its flawless implementation in real-world devices.

‍

Testing WPA3 implementations and in particular those used by phones, laptops, embedded systems, and IoT devices, presents a unique set of challenges. The introduction of Simultaneous Authentication of Equals (SAE), also called the "Dragonfly handshake," introduces strong protections but also adds complexity. Similarly, the changes to the 4-way handshake with WPA3-Personal, and the broader use of EAP-based authentication in WPA3-Enterprise, require a deeper understanding and more nuanced testing strategies.

‍

This essay explores what is needed for comprehensive WPA3 security testing, with a particular focus on the difficulties in testing SAE and EAPOL messages, including message handling, edge cases, cryptographic parameter negotiation, memory safety pitfalls, and state machine resilience. It also explains how Penzzer, a modern fuzzing framework that can emulate Wi‑Fi Access Points and perform targeted fuzzing against WPA3 components - makes these advanced testing techniques accessible. By acting as a configurable Access Point that can deliver malformed, mutated, or protocol-deviant SAE and EAPOL messages, Penzzer enables security engineers to test their devices for vulnerabilities that could lead to crashes, authentication failures, logic bugs, or even remote code execution.

‍

The Evolution of WPA Security and Why WPA3 Requires Deeper Testing

The Limitations of WPA2

For nearly two decades, WPA2 has been the dominant Wi-Fi security protocol. Although robust for its time, WPA2's vulnerabilities became increasingly apparent as modern attack techniques evolved. Several issues prompted the need for a successor protocol:

• Offline dictionary attacks: The WPA2‑Personal 4‑way handshake allowed attackers to capture a single exchange and launch offline brute-force attacks against network passphrases.
• Key reinstallation attacks (KRACK): Flaws in the 4‑way handshake enabled attackers to perform key reinstallations, weakening encryption guarantees.
• Weak passphrase vulnerabilities: Many WPA2 networks rely on user-chosen passwords, which are often weak.

These issues demonstrated that both cryptographic design and implementation correctness were critical fail points.

‍

WPA3: Design Goals and Security Enhancements

WPA3 introduced several major improvements:

• SAE (Simultaneous Authentication of Equals) replaces PSK authentication to provide resistance to offline dictionary attacks.
• Forward secrecy is ensured even if long-term keys are compromised.
• Improved WPA3-Enterprise security level, offering 192-bit cryptographic strength.
• Protected management frames become mandatory, reducing spoofing risks.

Yet, these improvements add complexity to the protocol and increase the potential for implementation errors.

‍

Why WPA3 Testing Is More Challenging

WPA3's structure introduces several new challenges for implementers and testers:

• State machine complexity has increased, especially in SAE.
• Cryptographic parameter negotiation, especially with ECC groups, must be tested for both compliance and robustness.
• Strict timing and retry behavior must be implemented correctly.
• Malformed-message resilience is essential; WPA3 implementations must gracefully handle unexpected or invalid handshake elements.

These challenges make WPA3 testing harder than testing WPA2, emphasizing the need for fuzzing and implementation-level validation.

‍

Understanding SAE and Why It Is Difficult to Test

Overview of SAE

SAE is a password‑authenticated key exchange (PAKE) protocol designed to resist offline brute-force attacks. It relies on:

• Mathematical groups (typically elliptic curves)
• Commit messages exchanged between peers
• Confirm messages that verify shared secrets

This process replaces the WPA2 4‑way handshake for initial authentication.

‍

The Two SAE Phases

SAE comprises two main phases:

1. Commit Exchange: Peers exchange cryptographic values (Commit frames). These include group selection and scalar/element data.
2. Confirm Exchange: Peers validate the shared secret using Confirm frames.

Testing both phases thoroughly is essential, as each introduces potential attack surface.

‍

Testing Challenges in SAE

SAE is more complex than previous mechanisms, and fuzzing it presents unique obstacles.

‍

Timing Sensitivity

SAE includes anti-clogging mechanisms to prevent denial-of-service attacks. Devices may:

• Introduce random delays
• Rate-limit incoming commit attempts
• Require anti-clogging tokens

Fuzzing such timing-sensitive mechanisms without being misidentified as an attacker is difficult.

‍

State Machine Complexity

SAE implementations often include:

• Multiple peer states
• Retry logic
• Anti‑clogging logic
• Group negotiation fallback paths
• Failure modes (e.g., if a group is unsupported)

Ensuring the state machine gracefully handles unexpected commits and confirms is a major fuzzing challenge.

‍

Group Negotiation Edge Cases

SAE supports multiple ECC groups, such as:

• P‑256
• P‑384
• Brainpool curves

Testing involves sending:

• Unsupported group identifiers
• Malformed scalar/element pairs
• Invalid curve points
• Oversized or undersized values

Incorrect handling could lead to memory corruption or infinite loops.

‍

Cryptographic Validation Failures

Malformed SAE messages may force devices to:

• Validate invalid points
• Process invalid hashes or MACs
• Handle large or negative values

Implementations that fail to check bounds correctly may crash.

‍

Replay and Reflection Attacks

SAE is designed to resist such attacks, but improperly implemented replay protection may allow state desynchronization.

Fuzzing must simulate replay conditions accurately.

‍

EAPOL Testing in WPA3 and Why It Is Difficult

Even with SAE in WPA3-Personal, EAPOL messages remain a core part of the protocol. For WPA3-Enterprise networks, EAP‑based authentication becomes even more critical.

‍

Overview of EAPOL in WPA3

EAPOL (Extensible Authentication Protocol over LAN) includes:

• Key handshake messages (similar to WPA2)
• EAP Identity and authentication exchanges
• Cryptographic confirmation checks

Though many parts are unchanged from WPA2, the stricter cryptographic requirements and interaction with SAE introduce new test scenarios.

‍

EAPOL Testing Difficulties

Strict Validation Rules

WPA3 mandates strict validation of:

• Message MICs
• Replay counters
• Key descriptor fields
• Nonces and key data

Fuzzing must generate test cases that specifically target these constraints.

‍

Nested Protocol Complexity

EAPOL often encapsulates:

• EAP
• TLS (in WPA3-Enterprise)
• Inner authentication mechanisms (e.g., MSCHAPv2)

Malformed messages deep inside nested structures may not be tested unless the framework provides full control over packet layers.

‍

Hardware and Driver Variation

Different Wi-

Fi chipsets and drivers will:

• Parse EAPOL differently
• Have differing levels of strictness
• Expose vendor-specific vulnerabilities

A testing tool needs to adapt to these variations.

‍

Difficult-to-Reach Logic Paths

Many EAPOL bugs reside in:

• Retry logic
• Timeout handlers
• Rare negotiation failure paths

Coverage-based fuzzing can help ensure these paths are explored.

‍

Interdependency with SAE State

In WPA3-Personal, EAPOL runs after SAE succeeds.
This creates a chain:

• Errors in SAE affect entry into EAPOL
• Errors in EAPOL may expose inconsistent SAE state

Comprehensive testing must model full handshake progression.

‍

What Is Needed to Properly Test WPA3 Implementations

Testing WPA3 requires more than simple packet injection. Below are the essential components.

‍

A Configurable, Protocol-Aware Access Point

A WPA3 tester must:

• Act as a real Access Point
• Support both WPA3-Personal and WPA3-Enterprise
• Allow full control over SAE commit and confirm messages
• Allow manipulation of EAPOL key-handshake fields

‍

Ability to Send Malformed, Mutated, or Protocol-Deviant Messages

Effective testing requires the ability to send:

• Invalid ECC points
• Incorrect group identifiers
• Oversized scalar values
• Faulty MIC values
• Replay packets
• Out-of-order messages
• Messages with invalid lengths

A fuzzing engine must generate these systematically.

‍

State-Machine-Aware Fuzzing

Because WPA3 involves multi-step handshakes, the fuzzer must:

• Know which state the target device is in
• Generate valid messages when needed
• Inject mutated messages at the correct time
• Recover state cleanly after device failures

‍

Hardware Integration

Some WPA3 vulnerabilities are located in:

• Wi-Fi chipset firmware
• MAC layer drivers
• Wireless supplicant implementations (e.g., wpa_supplicant, iOS, Android)

Therefore, the testing framework must accommodate:

• Real physical devices
• IoT devices with limited debugging interfaces
• Different chipsets

‍

Logging, Packet Capture, and Visibility

Testing WPA3 requires:

• Full packet captures of all messages
• Debug logs of both AP and client devices
• Structured crash detection and logging
• State-machine visualization

‍

How Penzzer Enables WPA3 Fuzzing

Penzzer, a modern fuzzing and testing framework, provides capabilities specifically designed for complex wireless security testing.

‍

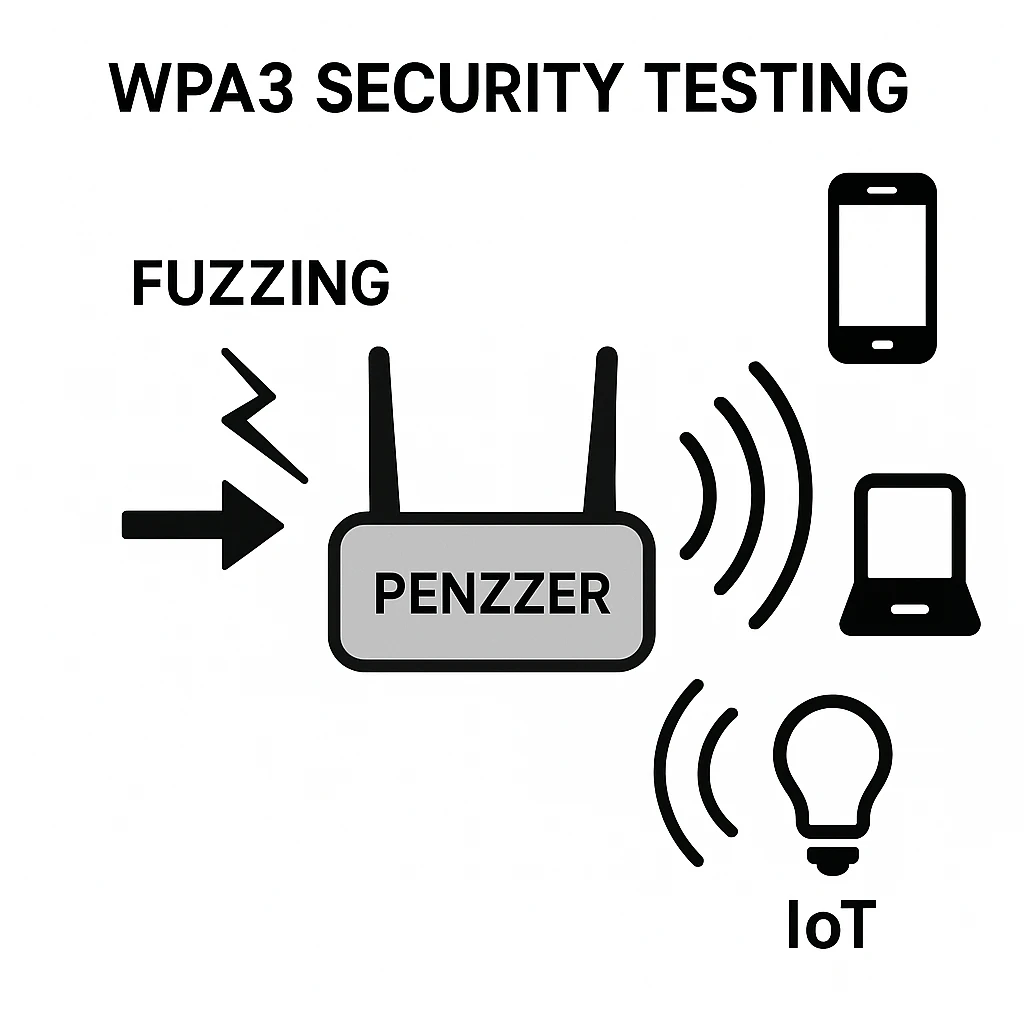

Penzzer as a WPA3-Capable Access Point

One of Penzzer's core advantages is that it can operate as a fully functional, configurable WPA3 Access Point. This allows security engineers to connect their devices (phones, laptops, IoT devices) to a controlled environment where all WPA3 messages can be:

• Inspected
• Mutated
• Replayed
• Dropped
• Reordered
• Delayed

This AP-emulation capability is crucial for testing devices whose Wi-Fi stacks or drivers cannot be instrumented directly.

‍

Integrated Support for SAE Fuzzing

Penzzer is designed with deep WPA3Personal testing in mind. It provides:

• Mutation strategies for SAE commit messages (invalid groups, random scalars, malformed curve points)
• Mutation strategies for SAE confirm messages (invalid hashes, mismatched secrets)
• Replay and reflection tests
• Latency and anti-clogging behavior exploration
• Group negotiation deviation testing

These allow Penzzer to uncover vulnerabilities in:

• ECC validations
• State machine transitions
• Error-handling routines

‍

Fuzzing EAPOL Messages with Penzzer

For both WPA3-Personal and WPA3-Enterprise, Penzzer allows fine-grained manipulation of EAPOL messages. This includes:

• Fuzzing message lengths
• Mutating MICs and key fields
• Testing replay counter logic
• Simulating out-of-order messages
• Sending oversized Key Data fields

This is key to discovering vulnerabilities in:

• wpa_supplicant implementations
• IoT Wi-Fi stacks
• Proprietary enterprise devices

‍

Multi-Layer Monitoring and Crash Detection

Penzzer integrates:

• Full packet capture
• Real-time report generation
• Device-side crash detection mechanisms
• Coverage feedback where available

This is particularly useful for debugging IoT devices, where crash visibility may otherwise be minimal.

‍

Support for Testing Real Devices

Penzzer is not limited to virtualized testing environments. It supports:

• Smartphones (Android, iOS)
• Laptops (Windows, Linux, macOS)
• Embedded Linux devices
• Bare-metal IoT appliances

Any device capable of connecting to a WPA3 network can be tested.

The ability to test real devices is essential because vulnerabilities often arise from:

• Chipset firmware
• Vendor-specific driver code
• Custom security wrappers

These layers are rarely testable in simulation.

‍

Real-World WPA3 Vulnerability Scenarios

Below are examples of the categories of vulnerabilities fuzzing tools like Penzzer aim to identify.

‍

Integer Overflows in ECC Field Parsing

If a device does not correctly validate scalar or element sizes in SAE commit messages, it may:

• Overflow internal buffers
• Trigger memory corruption
• Enter invalid states

‍

Null Pointer Dereferences in Error Paths

Improper handling of malformed SAE or EAPOL messages often results in crashes outside the main protocol flow.

‍

Replay Counter Bugs

Improper implementation of replay protection may allow attackers to:

• Roll back keys
• Desynchronize the state machine

‍

Improper Group Negotiation Handling

Devices may fail when receiving unsupported ECC groups, especially if the group list is malformed.

‍

TLS Layer Parsing Errors (Enterprise Mode)

Nested structures in EAP-TLS can trigger subtle bugs.

‍

Memory Exhaustion or CPU Exhaustion Attacks

Incorrect anti-clogging logic in SAE may allow attackers to overload devices.

These categories highlight why fuzzing is essential.

‍

Best Practices for WPA3 Security Testing

Test Across Multiple Devices and Vendors

Diversity is key. WPA3 behavior differs across:

• Chipsets (Qualcomm, Broadcom, Realtek, MediaTek)
• OS versions
• Custom vendor Wi-Fi stacks

‍

Emulate Real-World Network Conditions

Testing under:

• High latency
• Packet loss
• Congestion
• Power-saving modes

can reveal additional vulnerabilities.

‍

Why Penzzer Is Well-Suited for WPA3 Testing

Combines Access Point Emulation with Fuzzing

Traditional tools require separate systems for AP emulation and fuzzing. Penzzer integrates both.

‍

Designed for Modern Protocol Complexity

Penzzer's protocol-aware fuzzer understands:

• SAE message structure
• EAPOL key-handshake specifics
• Nested EAP/TLS messages

‍

Built for Real Devices

Many WPA3 issues only manifest on actual hardware. Penzzer enables this scenario.

‍

High Automation, Low Setup Overhead

Engineers can focus on analysis rather than tool configuration.

‍

WPA3 represents a major evolution in Wi-Fi security, offering significant improvements over WPA2, especially through the introduction of SAE and enhanced EAPOL handling. However, with increased complexity comes increased risk of implementation errors. Comprehensive testing of WPA3 requires deep control over protocol flows, the ability to generate malformed or mutated SAE and EAPOL messages, and the capacity to act as a fully functional Access Point capable of interacting with real devices.

‍

The challenges in testing SAE, ranging from timing sensitivity, complex state transitions, and ECC group validation, require sophisticated fuzzing strategies. Likewise, EAPOL's nested structures and strict validation requirements make it a deep, cryptographically rich attack surface.

‍

Penzzer addresses these challenges by providing a powerful, protocol-aware fuzzing framework that behaves as a fully configurable WPA3 Access Point. By enabling security engineers to test real devices - smartphones, laptops, IoT systems - Penzzer makes it possible to uncover vulnerabilities in drivers, firmware, and wireless supplicant implementations that would otherwise remain hidden.

‍

As wireless security continues to evolve, tools like Penzzer help ensure that WPA3 deployments across consumer and enterprise ecosystems remain robust, resilient, and secure.
